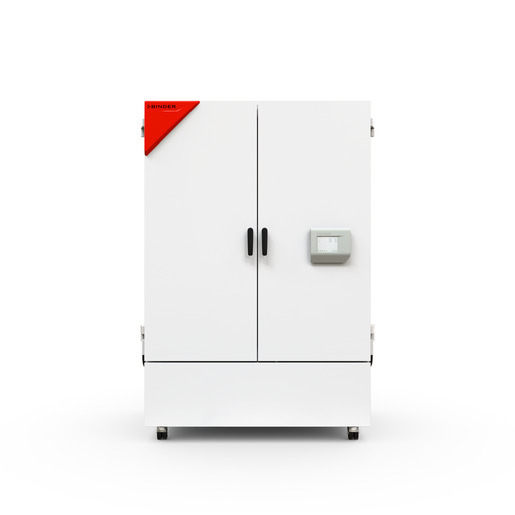

Model KBF 720 | Humidity test chambers with a large temperature / humidity range
Benefits
- A reliable option for critical ICH stability testing thanks to maximum climate homogeneity, even when the unit is fully loaded
- Reliable: failsafe operation over the long term thanks to proven compressor technology and interior made of stainless steel
- Smart: signal triangle with light-up status display and ergonomic control terminal with touchscreen program controller
- Economical: up to 40% lower energy consumption than the previous model thanks to modern inverter cooling technology
Product description
The proven specialist for reliable ICH stability tests in the pharmaceutical industry: the KBF masters all long-term tests, accelerated tests and stress tests. It fulfills all important ICH requirements, from precision to programming and documentation. With flexible water supply options for all installation locations. In addition, the new KBF consumes up to 40 % less energy than its predecessor. With optional LED light packages, the KBF can be converted into an ICH photostability chamber and a plant growth chamber.
Important characteristics
- Temperature range: 0°C to +70°C
- Humidity range: 10% to 80% RH
- Proven APT.line™ preheating chamber technology
- Up to 40% lower energy consumption compared to the previous model
- Energy-efficient cooling with modern inverter cooling unit
- Cooling with climate-neutral R-600a refrigerant
- Door heating to prevent condensation
- Adjustable fan speed
- Humidity regulation with capacitive humidity sensor and responsive steam humidification
- Robust housing design with HIT sandwich technology

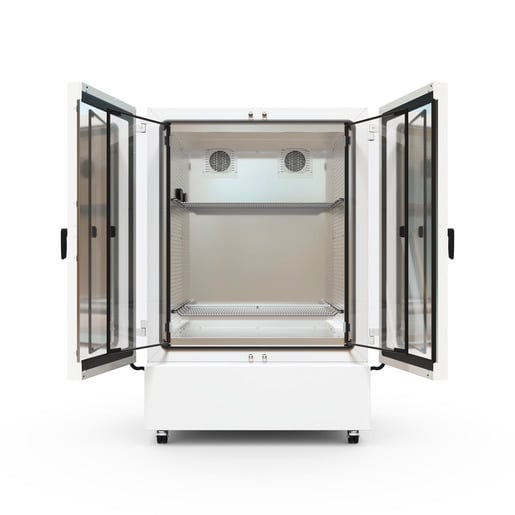

- Stainless-steel inner chamber
- Inner doors made of metal oxide-coated safety glass
- Two racks made of stainless steel
- Access port Ø 30 mm with silicone plug (up to model 130)
- Access port 80 mm x 45 mm with silicone plug (from model 260)
- Tabletop units (up to model 130) are stackable with stacking adapter
- Floor-standing units (from model 260) featuring robust twin casters, with brakes at the front
- Intuitive touchscreen controller with time-segment and real-time programming
- Ergonomically adjustable control terminal (from model 470)
- Signal triangle with light-up status display (from model 470)
- Internal data logger, measured values can be read out in open format via USB
- Class 3.3 independent temperature safety device (DIN 12880) with visual and acoustic alarms
- Unit self-test for comprehensive status analysis
- Data interfaces: Ethernet, USB
- BINDER Multi Management Software APT-COM™ basic edition
- Optional light modules for ICH photostability testing (for models 260, 470, 720)
- Optional LED light modules for plant growth (for models from 260)
Technical specifications
| Data | ||
| Designation | KBF720-230V | KBF720UL-120V |
| Article Number | 9020-0481 | 9020-0497 |
| Option model | Standard | Standard |
| Performance Data Temperature | ||
| Temperature range | 0...70 °C | 0...70 °C |
| Max. heat compensation at 40°C | 640 W | 640 W |
| Performance Data Climate | ||
| Temperature range with humidity | 10...70 °C | 10...70 °C |
| Humidity range | 10...80 % r.F. | 10...80 % r.F. |
| Temperature uniformity at 25°C and 60% RH | 0.3 ± K | 0.3 ± K |
| Temperature uniformity at 40°C and 75% RH | 0.2 ± K | 0.2 ± K |
| Temperature fluctuation at 25°C and 60% RH | 0.1 ± K | 0.1 ± K |
| Temperature fluctuation at 40°C and 75% RH | 0.1 ± K | 0.1 ± K |
| Humidity fluctuation at 25°C and 60% RH | 1.5 ± % r.F. | 1.5 ± % r.F. |
| Humidity fluctuation at 40°C and 75% RH | 1.5 ± % r.F. | 1.5 ± % r.F. |
| Recovery time after door was opened for 30 s at 25°C and 60% RH | 1 min | 1 min |
| Recovery time after door was opened for 30 s at 40°C and 75% RH | 5 min | 5 min |
| Electrical data | ||
| Rated Voltage | 220...240 V | 120 V |
| Power frequency | 50/60 Hz | 50/60 Hz |
| Nominal power | 1,6 kW | 1,6 kW |
| Unit fuse | 16,0 A | 16,0 A |
| Phase (Nominal voltage) | 1~ | 1~ |
| Dimensions and weights | ||
| Interior volume | 26 cu.ft. | 26 cu.ft. |
| Net weight of the unit (empty) | 657 lbs | 657 lbs |
| Load per rack | 88 lbs | 88 lbs |
| Permitted load | 220 lbs | 220 lbs |
| Wall clearance back | 3,94 in | 3,94 in |
| Wall clearance sidewise | 7,09 in | 7,09 in |
| Housing dimensions not incl. fittings and connections | ||
| Width net | 50.59 in | 50.59 in |
| Height net | 76.81 in | 76.81 in |
| Depth net | 35.43 in | 35.43 in |
| Internal Dimensions | ||
| Interior width | 39.8 in | 39.8 in |
| Interior height | 49.21 in | 49.21 in |
| Interior depth | 22.64 in | 22.64 in |
| Inner doors | 2 | 2 |
| Unit doors | 2 | 2 |
| Environment-specific data | ||
| Sound-pressure level at 25°C and 60% RH | 51 dB(A) | 51 dB(A) |
| Energy consumption at 25°C and 60% RH | 360 Wh/h | 385 Wh/h |
| Energy consumption at 40°C and 75% RH | 360 Wh/h | 440 Wh/h |
| Fixtures | ||
| Number of shelves (std./max.) | 2/16 | 2/16 |
